Oval Positive Displacement Flowmeter

                                                                  ULTRA OVAL Type S flowmeter------(Contains LUS, LUJ, LCS, LBS, LQS, LCJ, LBJ Series)

A highly accurate positive displacement flowmeter capable of supporting a wide range of applications including water, petroleum, solvent, etc.

Instantaneous and total flowrates can be indicated in the field and signal output is also available.

High Functionality and performance

High and low temperature service model

Explosionproof

Battery

1: Product Features:

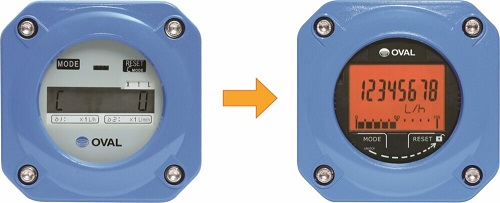

Enlarged display! Easily viewable!

●Bar graph display enables intuitive confirmation of instantaneous flowrate!

●Easily viewable, large unit display!

●Highly sensitive touch sensor has been introduced! Operable with your gloves on, even in the rain!
●Predicts aging deterioration of the flowmeter body and notifies the maintenance timing!
●Detects disconnection of sensor wire and notifies sensor failure!

Various functions added for easier operation.

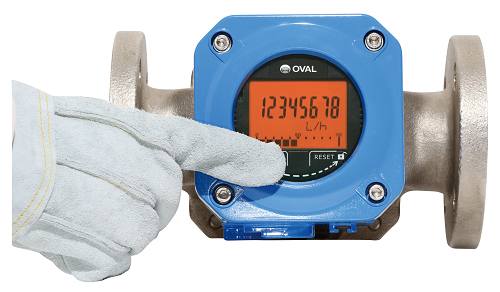

Newly developed touch switch

Easy operation with gloves on!

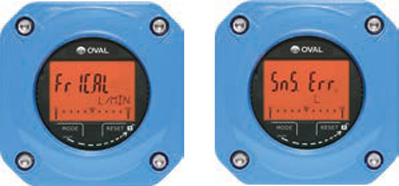

Various alarms with self-diagnosis function

Estimates wear status of body and announces maintenance timing.
Alarm in the event of sensor wire disconnection.

2: Product Features

• Linearity: ±0.35% or ±0.15%

• Metering chamber is of a pocketless configuration and is applicable to a wide range of liquids including chemical liquids.

• Battery-powered model is also available (battery replaceable).

• Low pressure loss, high durability

• Setting and changing parameters, flow monitoring, etc. are available through communication.

(Smart communication unit is separately required for smart type.)

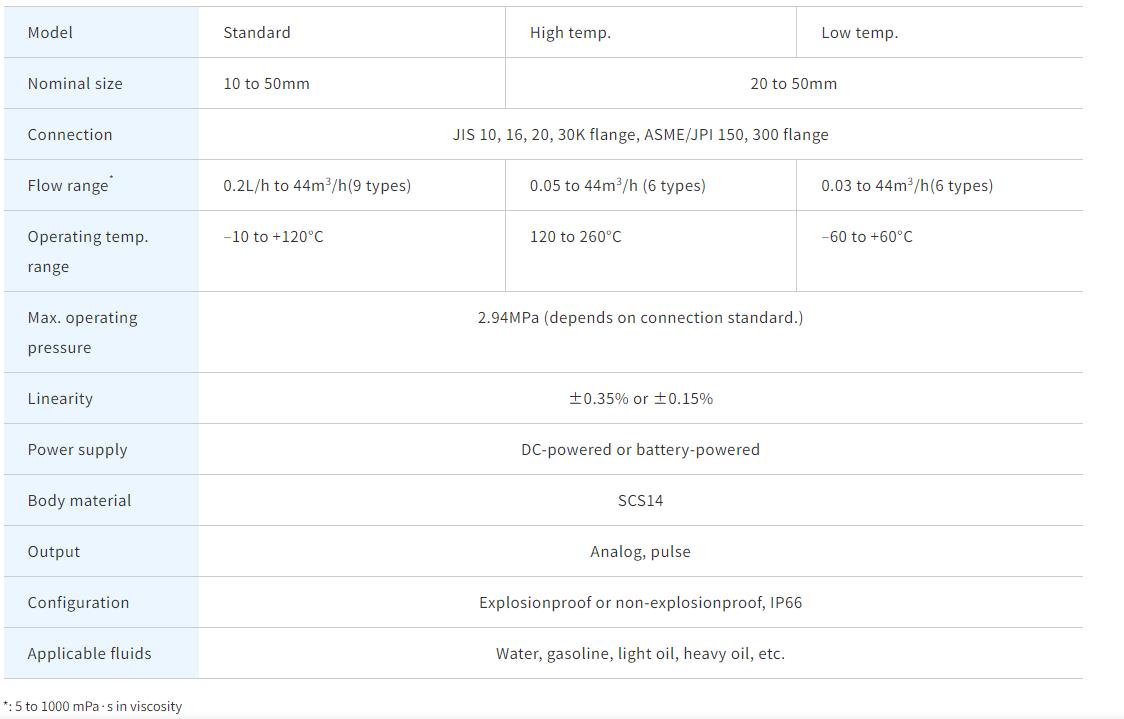

3: Products specification

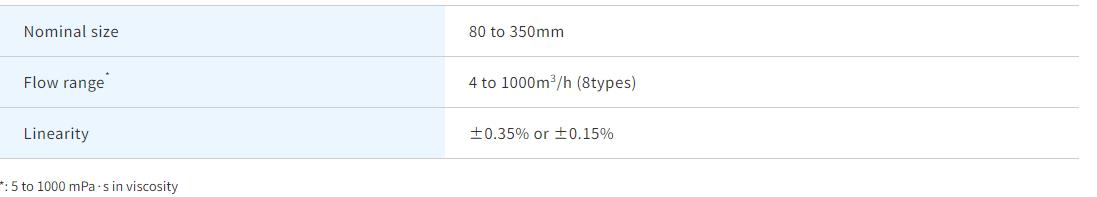

General Specification for nominal size 80mm and bigger

4: Applicable fluid

5: Product catalogue

cbb115e-3.pdf
