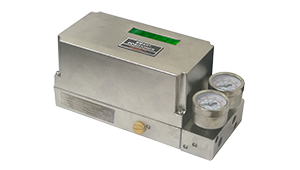

Chinese MSP-25 series intelligent valve positioner is a control device that controls the valve opening by receiving the 4-20mA command signal sent by the controller or control system and converting it into a pneumatic signal to drive the pneumatic actuator to control the valve opening. Valve position control of quarter-turn valves.
◇Adopt pressure valve electric/pneumatic conversion structure.
◇It can be used for pneumatic valves of different specifications.
◇Easy installation and debugging.
◇With LCD backlight display and button operation.
◇Three-stage protection function can be realized.
Main Technical parameter：
| Model series | MSP-25 | |
| Input signal | 4~20mADC | |
| Input pressure | 0.14~0.7MPa（20~105psi) | |
| Journey | Straight stroke | 10~150mm、5~130mm |
| Angular stroke | 0~90° | |
| Impedance | 450Ω（No HART），500Ω（with HART） | |
| Air supply interface | NPT1/4 | |
| Pressure gauge interface | NPT1/8 | |
| Power interface | G1/2 | |
| Operating temperature | Normal：.-20~80℃，Low：-40~80℃ | |
| Linearity | ±0.5%F.S. | |
| Hysteresis | ±0.5%F.S. | |
| Sensitivity | ±0.5%F.S. | |
| Flow | Flow when fully open：130L/min(@6.0bar) | |
| Air consumption | Stablely air consumption：＜0.0006Nm³/h | |
| Output characteristics | Linear, quick opening, equal percentage or custom | |
| Housing Material | Die-cast aluminum or stainless steel (316L) | |
| Protection class | IP66 | |
| Explosion-proof grade | ExiaIICT6 | |
| Unit Weight: | Aluminum：2.3kg；316L：4.6kg | |
