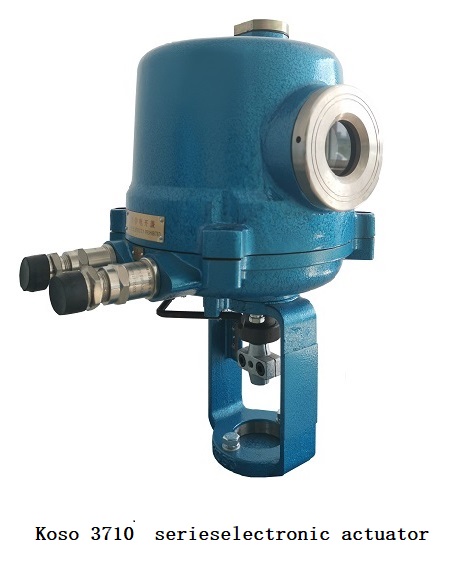

Koso 3710 series electronic actuator

- Feature

-Technical Parameters

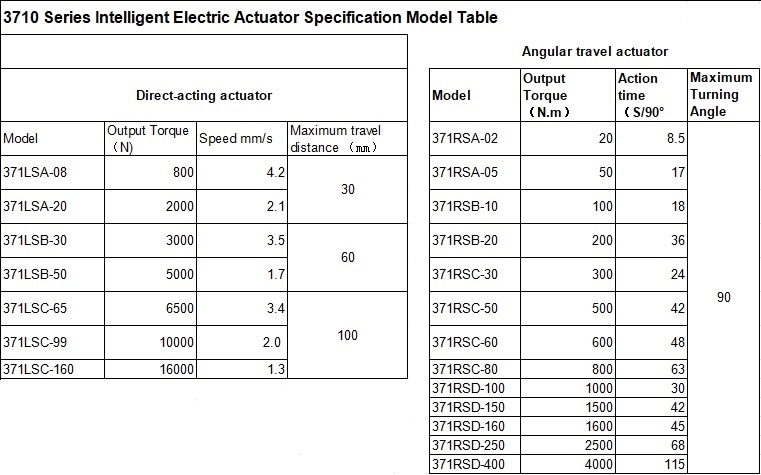

- Model Specifications

Functions and Features of the 3710 Series Smart Electric Actuator:

1. The control module uses proprietary technology from Japan's koso, boasting powerful capabilities.

2. Non-invasive remote control operation: Parameter adjustments and settings can be made without opening the cover, enabling manual operation on-site, and providing contact feedback as well as displaying hand/automatic working status.

3. The control module features menu settings, making parameter configuration and functional adjustments simple and convenient.

4. Input signal auto-configuration: Depending on the working conditions, choose between analog control (4-20mA) or switch control (220V). Wiring is independent and non-interfering, with both options capable of outputting a 4-20mA feedback signal.

5. Valve position display and fault alarm: It has the capability to display input signals and valve positions, along with indicators for signals, manual/automatic modes, forward/reverse action, limits, and faults.

6. Calibration function for input and feedback signals to enhance control precision.

7. Anti-interference feature: Set reverse action delay time to prevent reverse impact.

8. Zero point and travel calibration are convenient and accurate, settable at any position.

9. Four states for signal break conditions: fully closed, fully open, self-setting (full stroke), and hold in place.

10. Electronic limit function: It includes end-position contact feedback.

11. Fault protection feature: It can self-diagnose fault phenomena and automatically shut down according to a preset time to protect the actuator.

12. Temperature protection feature: A temperature protection switch is installed inside the motor to prevent it from overheating and burning out.

13. Action state memory function: It can query the cumulative time and number of actions, providing a basis for optimizing control and maintenance.

14. The actuator self-locks after power loss.

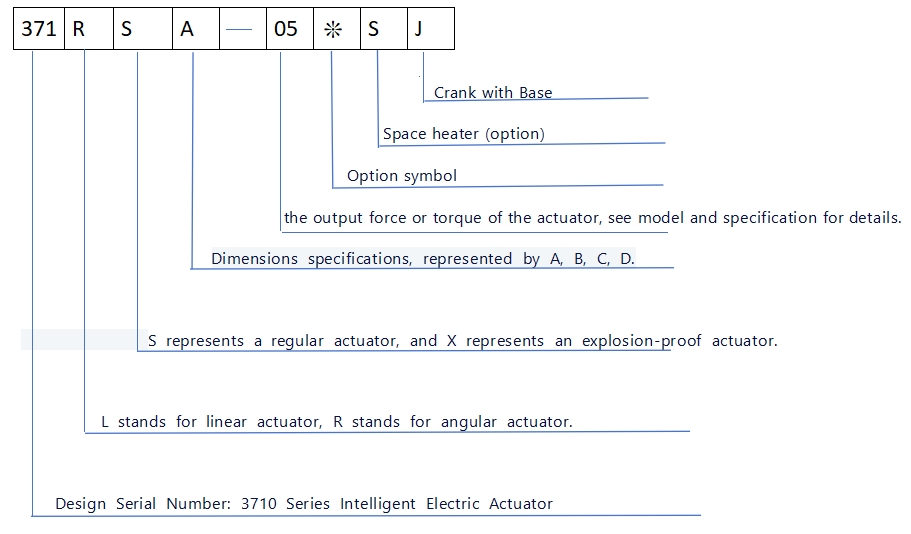

3710 series intelligent electric actuator order code:

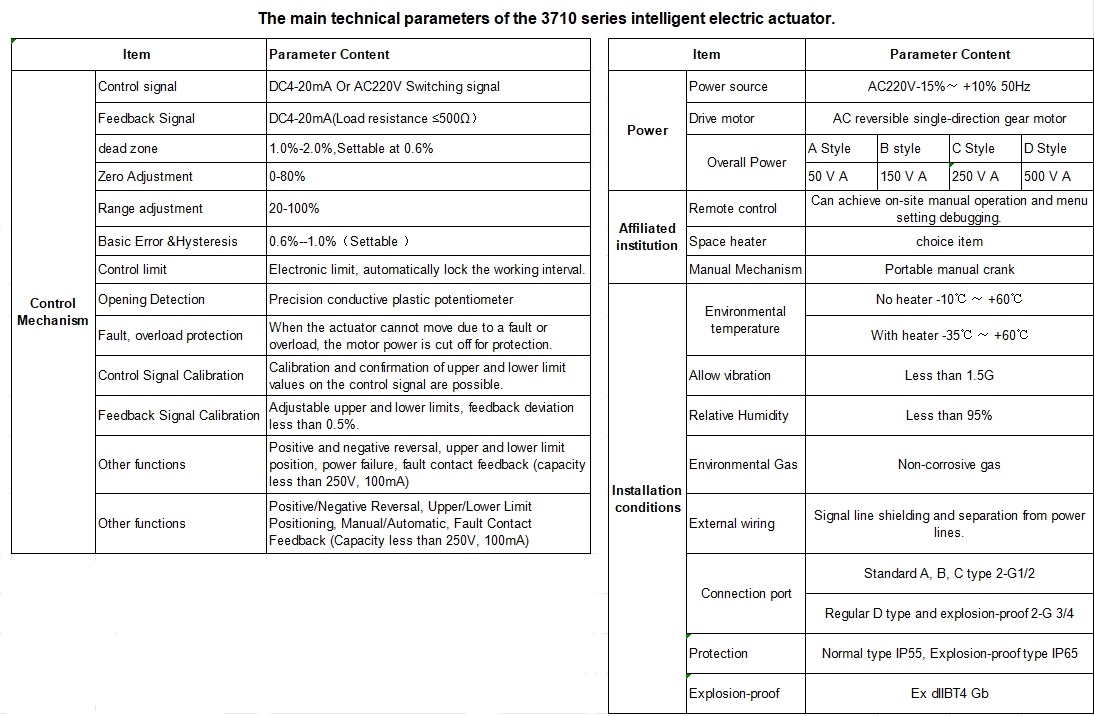

The main technical parameters of the 3710 series intelligent electric actuator.
