1 Product model:

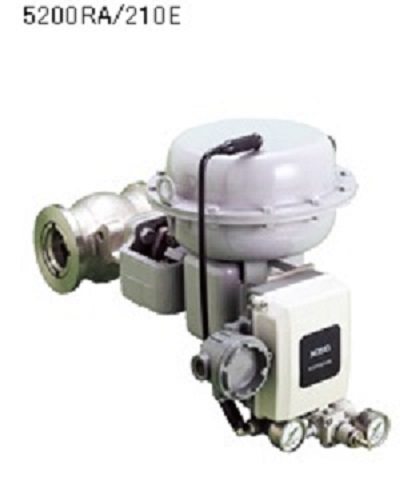

a) Koso 210E: Eccentric Segmental Ball Valves(Flowmax E/Wafter)
b) Koso 220E: Eccentric Segmental Ball Valves(Flowmax E/Flanged)
koso valve 210E & 220E is eccentric segmental ball valve for modulating application.
Comparing to globe valve, body is compact, ligh weight, and yet it has large Cv value, large rangeability,and can be convertible to reduced bore type (60, 40% reduce ) by changing seal ring only.
2: Koso 210E &220E valve Specification：
| Body Type | 210E | 220E | |
| Body Size | 1"(25A) to 12"(300A) | 1"(25A) to 16"(400A) | |
| Body rating | ANSI Class 150 to 600, JIS 10K to 40K | ANSI Class 150 to 300, JIS 10K to 20K | |
| Fluid temperature | -45 to +400° | -45 to +400° | |
| Connections | Wafer type | Flanged (RF) | |
| Body materials | SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M. etc. | ||
| Disc materials | SCS14A | ||
| Disc treatment | Chrome plated or Stellited | ||
| Seal ring materials | R.TFE, SUS316/Stellited, SUS630 | ||
| Rangeability | 100:1 | ||
| Flow characteristics | Approximate Linear (Inherent Characteristic) | ||
| Leakage | Metal seat | Rated Cv × 0.01% ANSI Class IV | |
| Soft seat | Bubbletight ANSI Class VI | ||
| Actuator combination | 6300RB, 6500RA, 7300RA: Pneumatic Cylinder Actuator 5200RA: Pneumatic Diaphragm Actuator 3600RB: Solid State Electronic Actuator | ||
