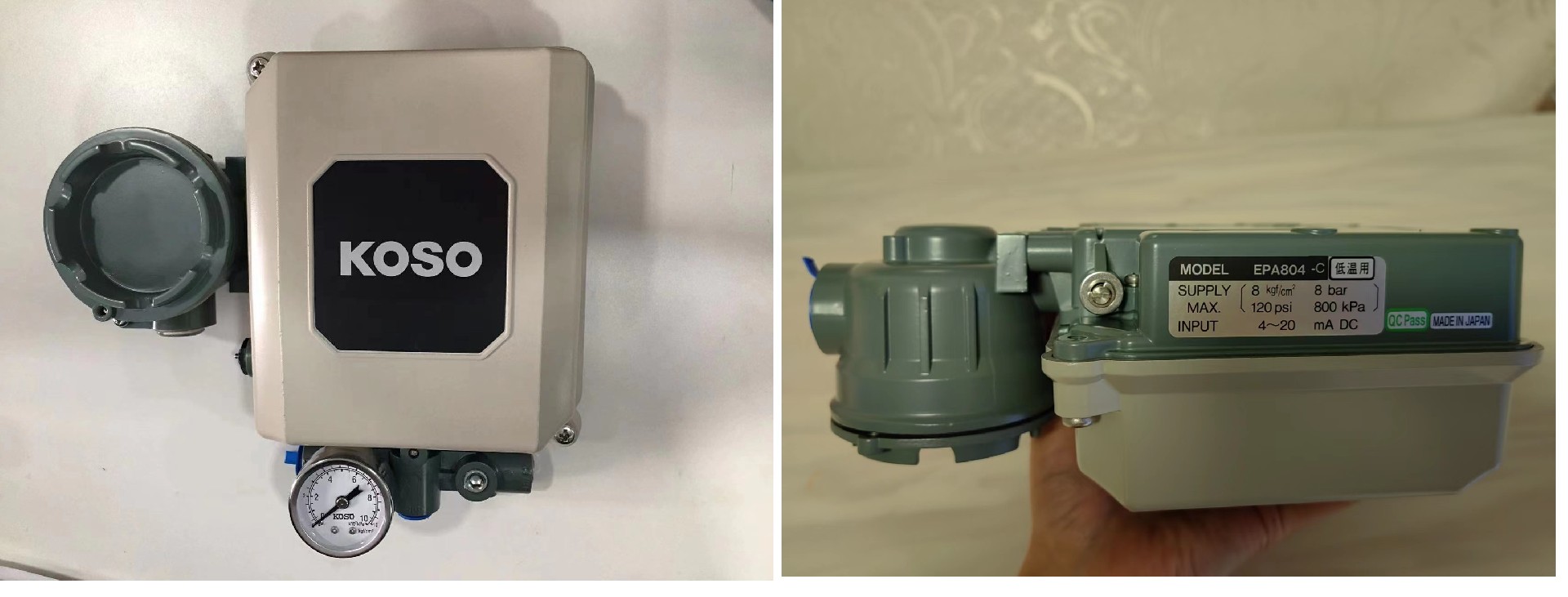

The EP800 Series Positioner, mounted on a pneumatic actuator, moves the actuator by receiving DC 4~ 20 mA signals from a controller. Also, the function of detecting and returning the actuator displacement provides accurate positioning in response to DC 4~ 20 mA signals.
The EP800 can be used with both spring-return and double acting actuators.
Koso EP800 Specifications:
| Type | EPA800 for single acting | EPC800 for double acting | EPB800 for 5200LA actuator |
| Input signal / Characteriatic | 4 to 20, 4 to 12, 12 to 20 mA DC / Linear | ||
| Air supply | 140 to 700 KPa | ||
| Single acting type | Double acting type | ||
| Linearity/Hysteresis | +/-1.0% / 0.5% | +/-1.5% / 0.8% | |
| Response level/Repeatability | 0.1% / 0.2% | 0.2% / 0.3% | |
| Air consumption | Output air pressure(50%) 5 Nl/min. at Sup. 140 KPa [gaug] | Output air pressure(50%) 15 Nl/min. at Sup. 400 KPa [gaug] | |
| Max. capacity | Output atomosphere 175 Nl/min. at Sup. 140 KPa [gaug] | Output atomosphere 400 Nl/min. at Sup. 400 KPa [gaug] | |
| Enclosure | Weather proof type, Explosion proof type, Intrisically safe explosion proof type | ||
| Air/Electric wiring connection | Rc. 1/4 / G1/2 | ||
| Environment temp. | Standard model: -20 to +80°, Low temp.model: -50 to +60°, High Temp.model: 0 to +100° | ||
This product is Made In Japan, detail models as below:
Spring return type:Single acting: EPA801; EPA811; EPA821; EPB801; EPB811; EPB821; EPL801; EPL811Double acting: EPC801; EPC811; EPC821
Rotary Series:Single acting: EPA804; EPA814; EPA824Double acting: EPC804; EPC814; EPC824
For Koso 5200LA Actuator:
EPB801,EPB802,EPB800

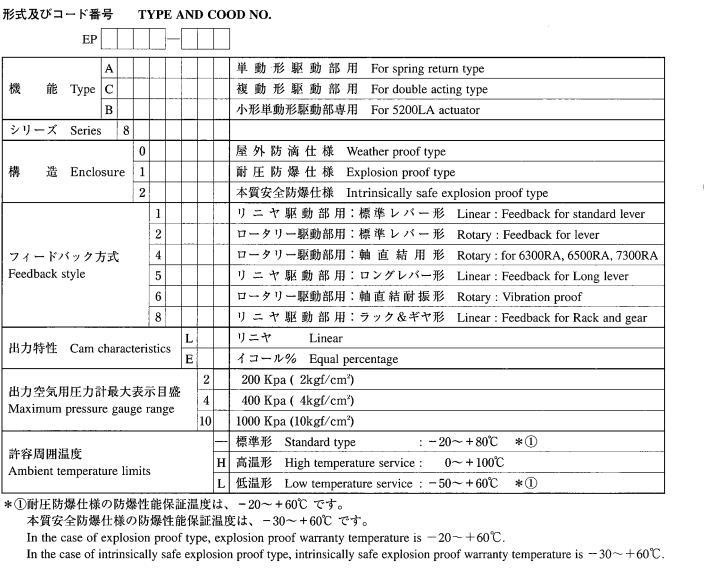

EPA800 Order Guide:
